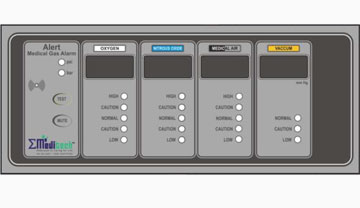

Digital Area Alarm
Features :
-
Accurate on line Digital Display of Line Pressure for all the services.
-
Factory calibrated imported pressure sensors.
-
Colour coded Bar Graph Display (LED) of Line pressure status (High, Caution, Normal, Caution, Low ).
-
Audible Alarm for High & Low pressure condition.
-
Test and Alarm Acknowledge/ Mute facility .
-
Adjustable Alarm acknowledge time span through program.
-
Programming facility of (High, Normal, Low) Alarm limits for all services, from front panel.
-
Facility to deactivate / activate any of the gas services through front panel programming key.
-
Facility to connect to remote slave alarm by potential free contacts provided.
Digital Gas Alarm Systems come in 1, 2, 3, 4, 5, and 6 gas categories where the number indicates the number of gases the system can handle. The system contains analog meters for displaying pressure of the different gases coming from the pipe lines. The system generates appropriate alarm in case of High pressure or Low Pressure in any gas. These alarms can also come with RS-485 Modbus interface for BMS connectivity. One NO/NC terminal is built-in for alarm extension and provision is made for adding external NO/NC interface for each gas individually.
The alarm is shown on the Master Alarm System which is placed with the Administration and can also be communicated through SMS using GSM Gateway. (Optional)
Analog Area Alarm
Available In:
-
Up to 6 services
Alarm Parameters:
-
High pressure
-
Normal pressure
-
Low pressure
Switches:
-
Test
-
Mute
Analog Gas Alarm Systems come in 1, 2, 3, 4, 5, and 6 gas categories where the number indicates the number of gases the system can handle. The system contains analog meters for displaying pressure of the different gases coming from the pipe lines. The system generates appropriate alarm in case of High pressure or Low Pressure in any gas.
Digital Gas Alarm-Alert Series (Master Alarm)
Ethernet Unit
This is a small unit which replaces the alarm extention port inside the Alarm System (2-8Gas Alarms) to enable LAN connectivity. UDP, ICMP, ARP and Mod-bus over UDP are the protocol supported by this tiny interface.
Central unit for SMS service-
Purpose :
-
Hospital Alarm System with GSM cell phone network.
-
User Configured massages can be sent to up to 32 Mobiles.
Hardware Features:
-
16 Bit Microcontroller and Adequate Static RAM and Flash Memory.
-
Real Time Clock.
-
10 BaseT Ethernet Interface for Connecting with the Hospital LAN.
-
RS-485 Port us to interface with RS-484 Ports.
-
I-Built GSM Modern for connectivity with the GSM Network. User needs to Provides a SIM with active telephone number and adequate balance. Post connection is preferred.
-
2x16 Character LCD and 6 soft keys for System Configuration.
-
ABS Enclosure Dimansions 192x96x50mm.
-
External Power Adapter for 220VAC.
Software Feature :
-
Supports up to 32 Moble Numbers.
-
User can select the massage text asa well as events on which a message is to be sent.
-
Diffrent Massages can be assigned to diffrent mobile numbers.
-
Complete Status can be sent to selected mobiles at predefined time.
-
Last 1000 Events are Logged with date and time information.
-
Alarm Status can be monitored on one or more PCs in the hospital connected over LAN.
-
Protocols Supprted: UDP, TCP/IP, ICMP, ARP.
Remote control for calibration-
-
The Gas Alarm are provided with an infrared port. A normal infrared Remote is used for calibration and adjusting the limits of the Gas Alarm.
