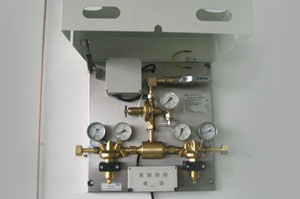

Automatic Changeover (Oxy/N2o/Co2)
Features :
-
A-bank in use.
-
B- bank ready for use.
-
Control panel has in built LED display to indicate normal, low for line pressure.
-
The control panel include pressure gauge (63mm) to indicate the gas pressure of each header and pipe line distribution pressure.
-
Capable to provide a distribution flow rate in excess of 2700 Lpm.
-
The control panel incorporate safety puncture in case of excess pressure i.e 100Psi.
Automated Changeover is a panel attached to manifold having multiple gas cylinders. As soon as the gas in one bank runs below set pressure, it sounds an alarm and switches to the other bank. Specific colored LED lights indicate the bank in use and the bank on standby. The device also indicates whether the gas pressure is in normal or low along the banks and the mains. The Digital Automated Control Panel displays actual pressure in each bank. The feature of parallel system is available in which multiple displays are placed at different locations (or floors) which also show the same indicators as in the main system.
These panels also come with RS- 485 Modbus interface for BMS connectivity. Provision is made for adding external NO/NC interface for each bank individually. GSM Gateway can monitor the status of each Automated Control Panel and report status as desired
We offer to our customers a range of high performing fully automatic gas control panel for oxygen, N2O, CO2. These equipments are designed with both safety and continuity of flow supply at a constant pressure.

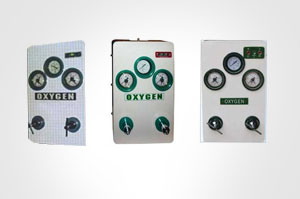

Semi Automatic Changeover (Oxy/N2o/Co2)
Semi-Automated Control Panel System contains analog pressure meter for displaying pressure of each incoming bank and mainline gas pressure, As soon as the gas in one bank runs below set pressure, it sounds an alarm and switches to the other bank
We offer our semi automatic gas control panels. These equipments are used for checking the gas level. Our products are known for their ability to yield accurate results.

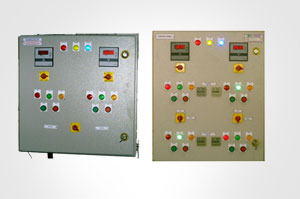

Electrical Control Panel (Vac./Air)
Features :
-
Most Advanced designed with DOL Starter & relays
-
Auto phase correction * to prevent reserve rotation
-
Mode : Mannual/Auto/Duplex (optional)
-
Timer Contraolled * for duty/stand-by auto selection
-
Digitel Ammeter/Voltmeter
-
Hour-meter for each motor
-
Phase Indicato
-
MCBs/MCCBs
-
Compact Design
-
0-24 hours programmable for Duty selection of motors
Our panels are come with compact in size and equipped all safety measure to comply international standards.
Common electrical control panel for Electrical equipments, motors, pumps, along with automatic switch gear system for motors, complete with inside wiring & cabling, electrical contractors with single phase preventing units & Digital voltmeter, ammeter.
