Compressed Air System
Features :
-
Totally oil free delivery as per medical standard.
-
Easy to use and operate
-
Low maintenance
-
Maximum power saving
-
Equipped with latest technology equipment
-
Comply with latest health standard
We design Medical Compressed Air system as per requirement of Hospital Structure according to specific standards of MGPL. Our design and equipment comply with latest technologies and standards to meet complete requirement of hospital with in constraints of Clients. Our systems are well known for their performance and durability.
Vacuum System
Features :
-
Total delivery as per medical standard.
-
Easy to use and operate
-
Low maintenance
-
Maximum power saving
-
Equipped with latest technology equipment
-
Comply with latest health standard
We are one of the established organizations occupied expertises in MGPS system. Medical Vacuum System is key part of MGPS.
We use latest technology and standard specification for providing best suitable vacuum system. We can able to provide wide range of vacuum system for different size hospital requirement.
Our Design/product range is provided with different relays which regulate the vacuum pump functions and working in a way to let them work effectively according to requirement.

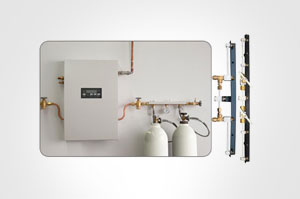

Manifold (Oxy/N2o/Co2)
Gas manifolds are designed to supply the pipeline system with sufficient quantity of gas by cylinders or tanks. We can provide manifold system according to EN ISO 7396-1 or HTM 02-01 or NFPA or other relevant medical standards.
The typical manifold for medical gases (Oxygen, Nitrogen, CO2 & Medical Air) usually consists of a two-sided cylinder supply with automatic changeover between the empty and full side, and an additional third source for emergency supply.
For oxygen, the liquid source is usually used as the primary supply, while the two-side cylinder supply is used for reserve. The design of manifolds enables highly reliable functioning and offers a number of advantages for the user.
Manifold can be opted for flexible installation while integrating the manifold header with the change over unit through SS Braided High Pressure Tail Pipe conforming to standards, thus rigid alignment requirement while installing the system could be avoided. High Pressure Header Isolation valve can also be integrated in the system if required. Connection to cylinder end of pigtail / tailpipe to suit different standard cylinder valve are also available on request.

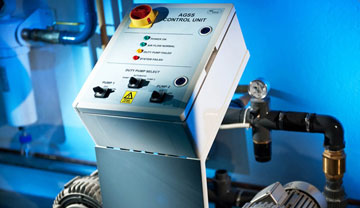

AGSS System
Features :
-
Simple to install
-
Easy to operate
-
Low noise level
-
Perfect overview /supervision
AGSSs (Anesthesia Gas Scavenging System)
An AGSS system is a medical device used in hospitals. It is used to gather gas or aerosolized medication after it is exhaled from the patient or left the area of the patient. Often used to collect anesthesia, it can also be used to collect any type of gas or aerosolized medicine that is intended only for the patient and should not be breathed in by any other medical personnel.
